Z41T / W / H 明桿楔式閘閥
Clear Pole Cuniform Gate Valve
用途：本閥門廣泛適用于石油、化工、電力、制藥 等行業，在公稱壓力≤1.0MPa 的蒸汽、水、 油類等介質的管路上，作啟閉用。
Usage: It has been widely used in the fields of petro-chem, chemical industry, electricity and medical, etc. It is used by means of open and close on the pipes of steam, water and oil, etc. under the pressure of
≤1.0MPa.

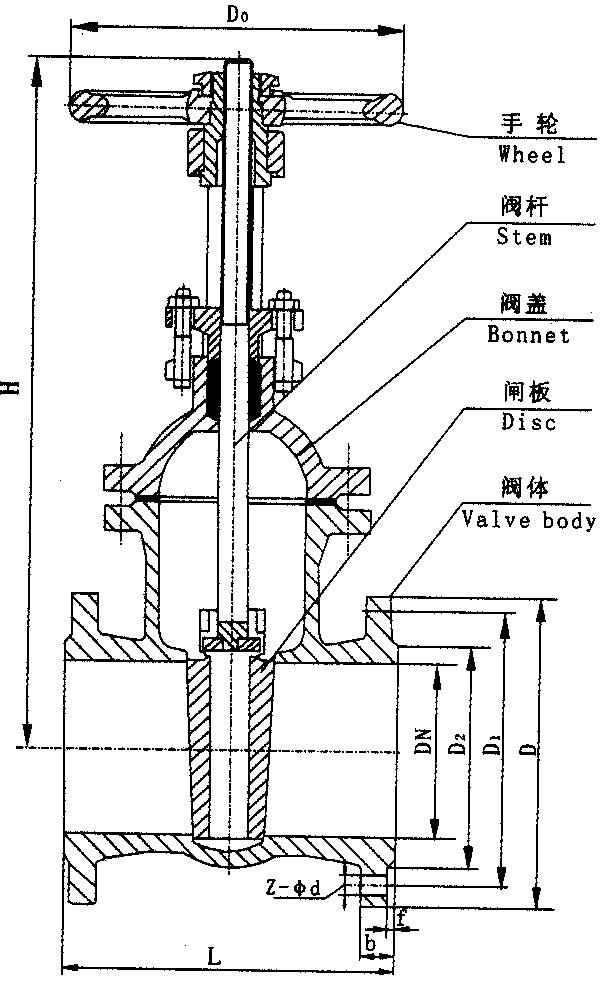

主要零件材質 Material of Main Parts
|
零件名稱 Part Name |
材質 Material |
|
閥體、閥蓋、閘板 Body, Bonnet, Wedge |
灰鑄鐵 Cast Iron |
|
閥桿 Stem |
碳鋼 Carbon Steel |
|
墊片 Gasket |
石棉 Asbestos |
性能規范 Performance Data
|
型號 Type |
公稱壓力 Nominal Pressure(Mpa) |
實驗壓力 Testing |
工作溫度 Working Temperature ( ℃) |
適用介質 Suitable Medium |
|
|
強度（水） Strength(Water) (Mpa) |
密封（水） Sealing(Water) (Mpa) |
||||
|
Z41T-10 |
1.6 |
2.4 |
1.8 |
≤200 |
蒸汽、水 Vapour Water |
|
Z41W-10 |
1.0 |
1.5 |
1.1 |
≤100 |
蒸汽、水 Vapour Water |
