H44T / W / X -10 / 16 止回閥 Swing Check Vavle
用途：本閥門作防止介質逆流的單向啟閉用。
Usage: It can prevent the water from flowing backward.
主要零件材料 Material of Main Parts
|
零件名稱 |
材料 Material |
||
|
H44T-10 |
H44W-10 |
H44X-10 |
|
|
閥體、閥蓋 Body, Bonnet |
灰鑄鐵 Cast Iron |
灰鑄鐵 Cast Iron |
灰鑄鐵 Cast Iron |
|
搖桿軸、銷軸 Rod Pin, Axle Pin |
碳鋼 Carbon Steel |
碳鋼 Carbon Steel |
碳 Carbon Steel |
|
閥瓣 Disc |
灰鑄鐵+黃銅 Cast Iron+Bronze |
灰鑄鐵 Cast Iron |
灰鑄鐵+橡膠 Cast Iron+Rubber |
性能規范 Performance Data
|
型號 Type |
公稱壓力 Nominal Pressure(Mpa) |
實驗壓力 Testing |
工作溫度 Working Temperature ( ℃) |
適用介質 Suitable Medium |
|
|
強度（水） Strength(Water) (Mpa) |
密封（水） Sealing(Water) (Mpa) |
||||
|
H44T-10 |
1.0 |
1.5 |
1.1 |
≤200 |
蒸汽、水 Vapour, Water |
|
H44W-10 |
≤100 |
油 Oil |
|||
|
H44X-10 |
≤50 |
水 Water |
|||

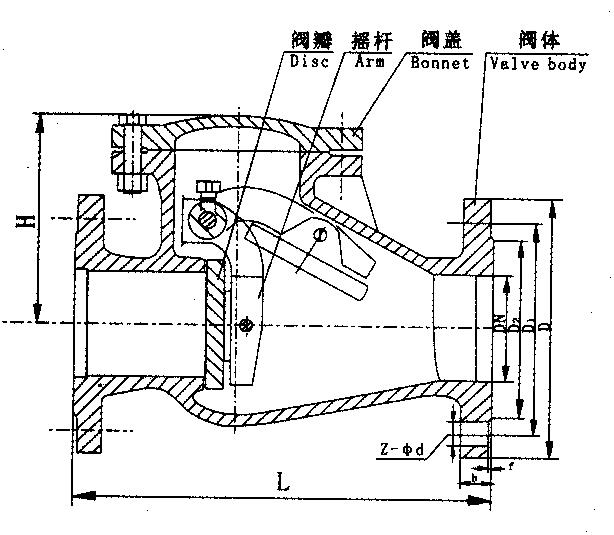

外形尺寸和連接尺寸 Outline & Connection Dimension
|
型號 Type |
公稱通徑 Nominal DN (mm) |
尺寸 Dimension(mm) |
重量 Weight(kg) |
|||||
|
L |
D |
D1 |
D2 |
b-f |
H |
|||
|
H44T/W/X-10 |
40 |
200 |
145 |
110 |
85 |
18-3 |
110 |
9..55 |
|
50 |
230 |
160 |
125 |
100 |
20-3 |
120 |
13 |
|
|
65 |
290 |
180 |
145 |
120 |
20-3 |
130 |
18.5 |
|
|
80 |
310 |
195 |
160 |
135 |
22-3 |
140 |
25.5 |
|
|
100 |
350 |
215 |
180 |
155 |
22-3 |
170 |
33 |
|
|
125 |
400 |
245 |
210 |
185 |
24-3 |
192 |
49 |
|
|
150 |
480 |
280 |
240 |
210 |
24-3 |
215 |
65 |
|
|
200 |
495 |
335 |
295 |
265 |
26-3 |
240 |
88 |
|
