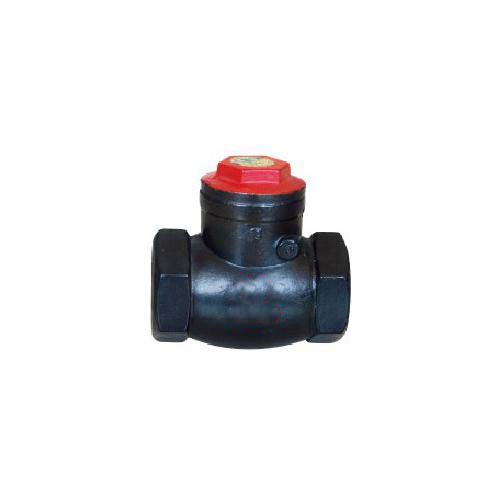

H14T-16 止回閥 Swing Check Vavle
用途：本閥門作防止介質(zhì)逆流的單向啟閉用。
Usage: It can prevent the water from flowing backward.
主要零件材料 Material of Main Parts
|
零件名稱 Part Name |
材料 Material |
|
體、閥蓋 Body, Bonnet |
灰鑄鐵 C ast Iron |
|
搖桿軸、銷軸 Rod Pin, Axle Pin |
碳鋼 Carbon Steel |
|
閥瓣 Disc |
黃銅 Bronze |
性能規(guī)范 Performance Data
|
型號 Type |
公稱壓力 Nominal Pressure(Mpa) |
實驗壓力 Testing |
工作溫度 Working Temperature ( ℃) |
適用介質(zhì) Suitable Medium |
|
|
強度（水） Strength(Water) (Mpa) |
密封（水） Sealing(Water) (Mpa) |
||||
|
H14T-16 |
1.6 |
2.4 |
1.8 |
≤200 |
蒸汽、水 Vapour, Water |

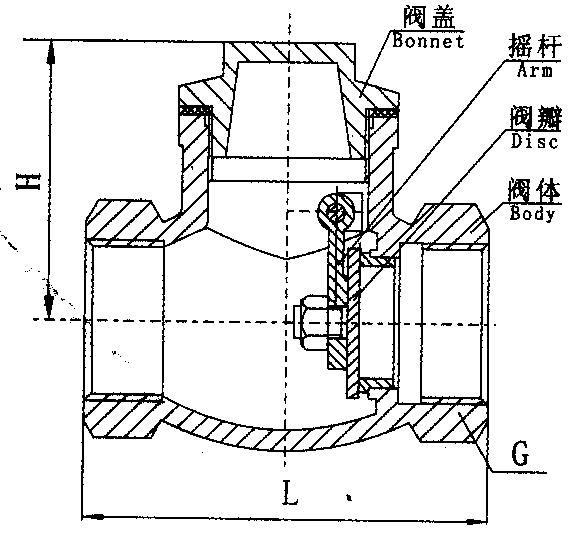

外形尺寸和連接尺寸 Outline & Connection Dimension
|
型號 Type |
G |
L |
H |
重量 Weight (kg) |
|
H14T-16 |
1/2 |
65 |
43 |
0.5 |
|
3/4 |
75 |
48 |
0.9 |
|
|
1 |
90 |
57 |
1.2 |
|
|
1.25 |
105 |
72 |
1.5 |
|
|
1.5 |
120 |
78 |
2 |
|
|
2 |
140 |
94 |
2.9 |
